Understanding Kingston 16Gbit DRAM Technology - RAM Memory

Published 4th December 2020 | Article by KingstonMemoryShop | Posted in RAM Memory

Kingston | 16Gbit DDR4 DRAM transition guide

At the beginning of Q4 2019, DRAM semiconductor suppliers started introducing the next generation high density DRAM for DDR4. This means that DRAM is transitioning from 8Gbit to 16Gbit technology.

Based on new wafer lithography (below 20nm), these new components:

Double the RAM density available. Allow higher capacity memory modules to be created. Provide lower power usage (per Gigabyte).

DRAM differences between Gbit and GB:

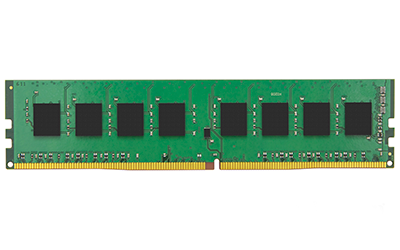

GB (Gigabyte)

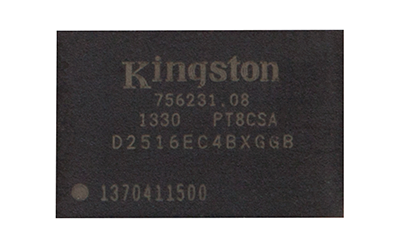

  • This measures the density of the chip within a DRAM module
  • The density of a DRAM chip is measured in Gigabits (Gbit)
  • A bit is the smallest unit measured in computing
  • A 16Gbit DRAM chip can hold 16 billion bits of data

GB (Gigabyte)
  • This measures the density of the chip within a DRAM module
  • The density of a DRAM chip is measured in Gigabits (Gbit)
  • A bit is the smallest unit measured in computing
  • A 16Gbit DRAM chip can hold 16 billion bits of data

How we can build the same capacity with different density chips

8GB DRAM Module:

8Gbit DRAM Chip (1024x8) in 1 Rank

8 DRAMs
  • 64bits

16Gbit DRAM Chip (1024x16) in 1 Rank

4 DRAMs
  • 64bits





Module Types with 16Gbit DRAM

  • 8GB Unbuffered DIMM / SODIMM (1Rx16)

    16GB Unbuffered DIMM / SODIMM (1Rx8)

    32GB Unbuffered DIMM / SODIMM (2Rx8)

    16GB ECC Unbuffered DIMM / SODIMM (1Rx8)

    32GB ECC Unbuffered DIMM / SODIMM (2Rx8)

    16GB ECC Registered DIMM (1Rx8)

    32GB ECC Registered DIMM (2Rx8)

    32GB ECC Registered DIMM (1Rx4)

    64GB ECC Registered DIMM (2Rx4)

Whilst this transition provides many benefits to server and computing power, not all platforms are supported with this new technology, so here is a guide to the key things to remember:

Intel

Server

Speed

16Gbit
  • 2020 Intel Server Platform

3200
  • Yes
  • Purley w/ Cascade Lake (Xeon x2xx Series)

2933
  • Yes
  • Purley w/ Skylake (Xeon x1xx Series)

2666
  • No

High end-Desktop / Workstation

Speed

16Gbit
  • Cascade Lake-X (X299X / C621)

3200
  • Yes
  • Skylake-X (X299)

2933
  • No

Client (Desktop / Mobile)

Speed

16Gbit
  • Next Gen 2020 Intel Desktop/Mobile

3200
  • Yes
  • Comet Lake (400 Series)

2933
  • Yes
  • Coffee Lake (300 Series)

2666
  • Yes
  • Coffee Lake / Kabylake (200 Series)

2400
  • *
  • Skylake / Kabylake (100 Series)

2133
  • No

*Check with system or motherboard manufacturer for an updated BIOS to support 16Gbit DRAM

AMD

Server

Speed

16Gbit
  • EPYC 7xx2 Series (ROME)

3200
  • Yes
  • EPYC 7xx1 Series (NAPLES)

2666
  • Yes

High end-Desktop / Workstation

Speed

16Gbit
  • Ryzen Threadripper �3900� Series TRX40/80, WRX80 (Castle Peak)

3200
  • Yes
  • Ryzen Threadripper 2900 Series X399 (Colfax)

2666
  • Yes
  • Ryzen Threadripper 1900 Series X399 (Whitehaven)

2666
  • Yes

Desktop

Speed

16Gbit
  • Ryzen 3rd Gen (Matisse) X570

3200
  • Yes
  • Ryzen 2nd Gen (Pinnacle Ridge) X470

2666
  • Yes
  • Ryzen 1st Gen (Summit Ridge) X370

2400
  • Yes
  • Ryzen 1st Gen (Raven Ridge) X370

2400
  • Yes

Mobile

Speed

16Gbit
  • Ryzen 3rd Gen Mobile (TBA)

3200
  • Yes
  • Ryzen 2nd Gen (Picasso)

2666
  • Yes
  • Ryzen 1st Gen (Raven Ridge)

2400
  • Yes
  • Ryzen 1st Gen (Raven Ridge) X370

2400
  • Yes


Kingston Technology is here to help

Benefit from Kingston Technology�s 32 years of industry-leading configuration expertise. All �Ask an Expert� services are free of charge and available for everyone, visit: www.kingston.com/askanexpert/memory

Alternatively, our Configurator tool can help you select the right DRAM for your system: www.kingston.com/configurator
